.Simulation is a software package aimed at providing the appropriate tools necessary for simulating the effects of Sonoluminescence, "the emission of short bursts of light from imploding bubbles in a liquid when excited by sound". At its core, the software package consists of three individual components that can be built and run independently of one another or incorporated together as a complete application. These components are the molecular dynamics and plasma simulations, the simulations scheduler, and the visualizer. Each of these components are described further in detail in the subsequent sections.

Modules Overview

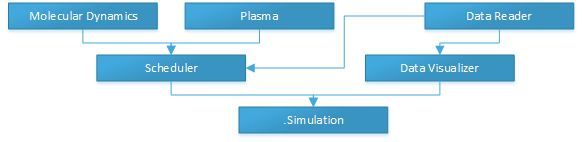

Below is a diagram of the individual modules that make up the three major components of the package. The arrows indicate the dependence of modules to certain other modules when the package is built as a single application. For instance, in order for Scheduler to schedule simulations, it requires the existence of both the Molecular Dynamics and Plasma Simulations. Likewise, Data Reader's parsing objects are necessary for both the Scheduler and Data Visualizer to read specific file types.

Scheduler

The Scheduler is .Simulation's utility for starting simulations with user defined parameters, either through field inputs in the utility's UI or by reading a previously written JSON style parameters file. The utility has the ability to monitor different stages of a simulation, generate necessary output, and pause, continue, or stop a simulation with a click of a button.

The code for the Scheduler is wrapped within SchedulerGUI. The main module class, SchedulerGUI::Scheduler is derived from Qt's main application window class, QMainWindow. provides the module's main functionality of reading parameter files and starting simulations while supporting the UI's main features programmatically.

Visualizer

Data Visualizer is a utility designed for the visualization of simulation data sets generated from both simulations.

The encapsulating namespace for this module is DataVisualizerGUI, with DataVisualizerGUI::DataVisualizer being the module's main class. DataVisualizerGUI::DataVisualizer inherits UI functionality from QMainWindow, Qt's main application window class.

declares an instance of DataVisualizerGUI::DataVisualizerGUIEX, an class extension of the user interface. contains all of the plotting widgets, which are extensions (DataVisualizerGUI::QCustomPlotEX) of QCPlot::QCustomPlot, a third-party Qt addition for drawing interactive graphs and plots.

Molecular Dynamics

Plasma

Data Reader

The Data Reader module is a small supporting API with the ability to read the various simulation input and output file types. Each of the file readers acts as a parser to interpret file data and a container for storing data that has been read in. The file readers are derived from the DataReader::DataFile base class, which provides the interface with common members for implementing the different types of file readers. The classes for this module are housed with the DataReader namespace.

The following are the file reader classes used for reading the different file types:

DataReader::DataSnapshot reads simulation snapshot JavaScript Object Notation (JSON) style files.

DataReader::DataSavepoint reads particle data from Comma-Separated Values (CSV) files.

DataReader::DataCollisionEnergy reads particle collision energy data from CSV style files.

DataReader::DataRPK reads predicted predicted bubble collapse data from CSV style files.

DataReader::DataParameters reads simulation parameters from JSON formatted files.

To instantiate any of the classes, you can call the constructor and pass the file name of the file you wish to parse. Alternatively, you may create an empty instance of the class and call the DataReader::DataFile::Read with the file name. Both methods will create the file reader and attempt to read from the file you reference.

Inline instantiation:

DataParameters params("myParameters.json");

Separated instantiation and reading:

DataParameters params;

params.Read("myParameters.json");
